GLAZED PIVOT ENTRANCE
NOVA

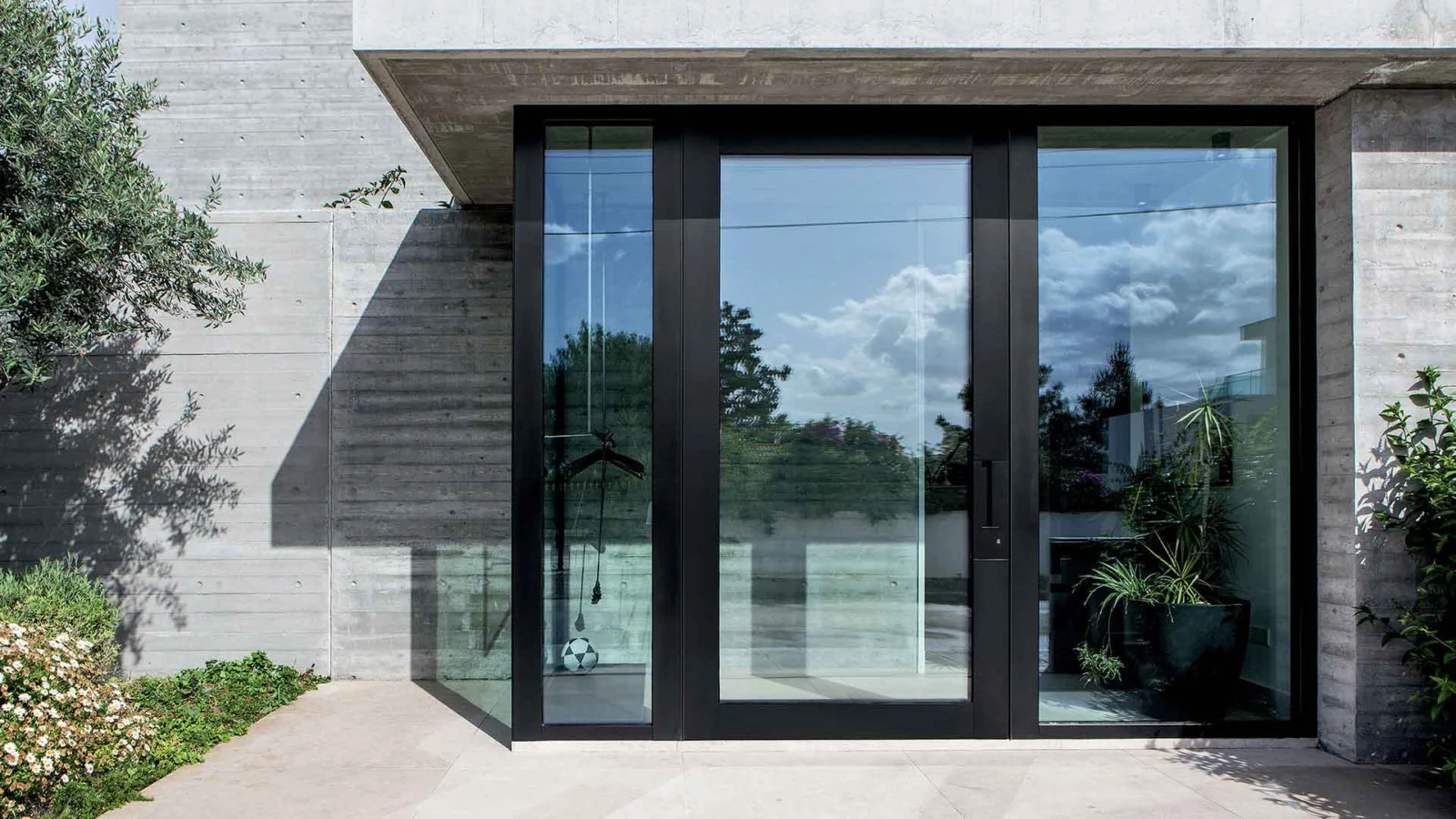

Bring light into the arrival experience. NOVA pairs a pivot opening with a glazed entrance composition, allowing the relationship between inside and outside to shape the design. It is an option for villas where transparency is central to the facade.
01
Light and proportion
The manufacturer lists overall standard sizes up to 3,200 mm wide and 6,200 mm high. The published Class 3 glazing size limit is 2,200 × 3,400 mm: dimensions and ratings must be checked together.
02
Thermal break as standard
NOVA’s frame and leaf incorporate a thermal break. The glazing specification and exposure of the opening should be reviewed for each project.
03
A tailored composition
A single leaf can be combined with a side panel or two side panels. Motorised electronic locking and integrated access controls are available options.
PERSONALISE NOVA
Material. Detail. Character.
Choose the glazing arrangement, aluminium finish, handle and access control. The official range includes metallic tones such as gold, platinum and copper alongside other finishes; the quotation will confirm the compatible choices.
YOUR PROJECT
Where NOVA fits.
Explore NOVA for a glazed villa entrance, a bright arrival hall or a facade that calls for visual connection. Discuss privacy, glass composition, shading and the required security specification before selecting the final configuration.
TECHNICAL OVERVIEW
Specify the complete configuration.
| Opening | Vertical pivot |
|---|---|
| Manufacturer overall standard dimensions | Up to 3,200 × 6,200 mm |
| Published Class 3 glazing limit | 2,200 × 3,400 mm |
| Manufacturer standard acoustic rating | 38 dB |
| Thermal break | Frame and leaf, standard |
Values above are published by Oikos for stated standard or optional configurations. Dimensions, coverings, glazing and optional systems affect the final specification. They do not confirm local stock, suitability for every exposure or UAE project approval. Request the current technical documentation for your selected configuration.
YOUR NEXT ENTRANCE
Let’s make it personal.
Share your opening dimensions, preferred materials and project location. We will discuss the configuration and prepare the next steps for your quotation.
